Digitus DN-95001 Cable Interface/Gender Adapter RJ-45 DC White

DIGITUS Passive PoE Adapter Cable - Fast Ethernet - Injector Cable & Splitter Cable - DC 5.5 mm Male & Female Features: Simplifies the installation of network devices by combining power and data transmission over a single cable. Easy to combine power and data cables into a single cable. Technical data: Input cable with RJ45 plug, DC socket and RJ45 socket Output cable for the terminal device with RJ45 plug, DC plug and RJ45 socket Suitable for 5.5 mm power plugs. Cable connection: 10/100 Mbps. Pinout: 1/2/3/6 for data transmission, 4/5/7/8 for power supply PVC jacket RJ45 plug

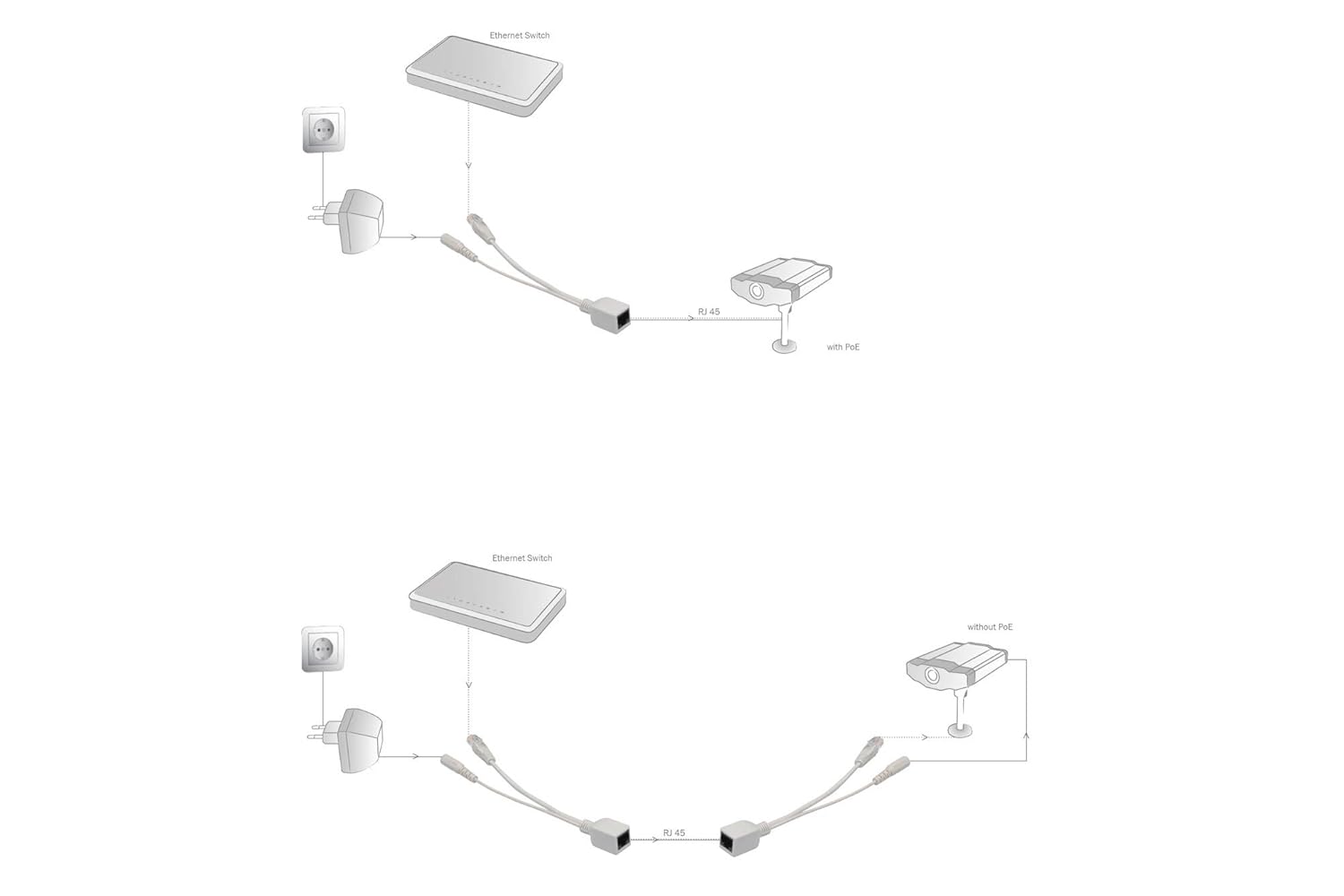

• PoE splitters are used whenever a surveillance camera, access point or other device is only to be supplied with power via the data line, but the device is not PoE-capable.
• The passive PoE injector cable has an RJ45 input for the Ethernet signal and a 5.5mm DC socket for the power supply of the PSE device - Output is an RJ45 connector for both signals.
• The Ethernet signal is transmitted from the passive PoE splitter to the PSE device via a cable with RJ45 plug and the power connection via a cable with 5.5mm DC plug.
• If the device used can be operated with real, active PoE, the passive PoE splitter cable does not have to be used - the PSE device receives the power via the LAN cable.
• The PoE splitter complies with the Fast Ethernet standard at up to 100 MBit/s and can be used with Windows, Mac OS, Linux and Sun regardless of the operating system.
